PE, HDPE pipes have been used extensively around the world. It is a cost effective solution for a broad range of piping applications in the municipal, industrial, marine, mining, landfill, duct and agricultural industries.

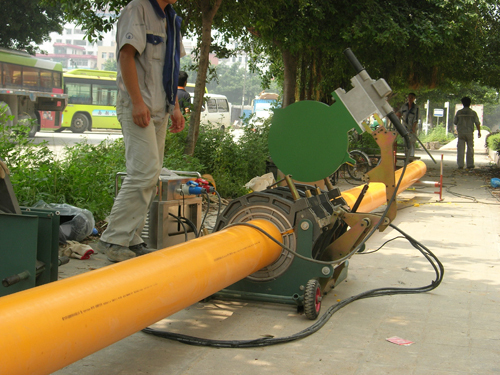

Butt fusion welding is an effective, reliable connecting method for PE, HDPE, PP, PVDF pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe.
Standard: TGS D2002(China),DVS2207-1(German), ISO11414(International)
Technical Parameter
| Item |
FM-160 |
FM-250 |
FM-315 |
| Pipe Range |
Φ160-Φ63
|
Φ250-Φ75
|
Φ315-Φ110
|
|
Power Supply
|
1-Phase 220V
|
1-Phase 220V
|
1-Phase 220V
|
|
Heater Power
|
1KW
|
1.8KW
|
2.2KW
|
|
Facer Power
|
0.71KW
|
1.1KW |
1.1KW |
|
Hydraulic Power
|
0.75KW |
0.75KW |
0.75KW |
|
Total Power
|
2.46KW |
3.65KW |
4.05KW |
|
Environ. Temp.
|
-10℃～45℃
|
-10℃～45℃
|
-10℃～45℃
|
|
Heater Temp. Rise
|
20-30Min
|
20-30Min
|
20-30Min
|
|
Pressure Range
|
0-7Mpa
|
0-7Mpa
|
0-7Mpa
|
|
|
626mm2
|
1298mm2
|
954mm2
|
Packing Information
|
Item
|
FM-160 |
FM-250 |
FM-315
|
|
Standard
Insert
|
Φ110、Φ90、Φ75、Φ63
|
Φ200、Φ160、Φ110、Φ90
|
Φ250、Φ200、Φ160、Φ110、Φ90
|
|
Optional Insert
|
Φ140、 Φ125 |
Φ180、 Φ140、Φ125、 Φ75
|
Φ225、Φ180、Φ140、 Φ125
|
| Components |
Base Machine、Facer、Hydraulic Unit、Heater、Facer、Storage Shelf & Electric Control Box、
Insert and Flange Stub Holder
|
Base Machine、Facer、Hydraulic Unit、Heater、Facer、Storage Shelf & Electric Control Box、
Insert and Flange Stub Holder
|
Base Machine、Facer、Hydraulic Unit、Heater、Facer、Storage Shelf & Electric Control Box、
Insert and Flange Stub Holder
|
| Packing Size |
920*460*470
|
1000*610*630 |
1070*700*630 |
| 630*460*485 |
760*465*410 |
810*630*700 |
| 710*450*540 |
760*530*500 |
640*470*575 |
| Total G.W |
142KG |
203KG |
239KG
|
Brand Introduction
We are manufacturer of HDPE pipe, HDPE fittings and fusion machinery since 1992. With around 30 years’ experience in this industry, with innovation and strong team in R&D, smart joint aims to provide a full solution for the PE pipe joints.
We are a fully-fledged ISO certified company. Smart Joint produce a full range of HDPE/PERT fittings in both metric and inch sizes up to 63" and 2000mm.These years, we made great effort in non pressure derating customized large PE fittings development. Products exported to USA, Canada, Latin America, Australia, South Africa, Peru,Asian, and African countries ect.
With watermark,WRAS, NSF ceritificate, products are welcomed by more customers. Rich experience to cooperate with pipe factories, partners for EPC projects and offer a one-stop solution with full packages HDPE joints solutions for the water supply, nuclear power plant, oiling&gas, district heating, mining, water treatment, sea desalination projects ect.
Besides as a joint solution supplier, we have our own construction team, with rich experience in gas, water, piping installation and pipe relining project, we can offer suggestions in how to get the most economic joint solution.
